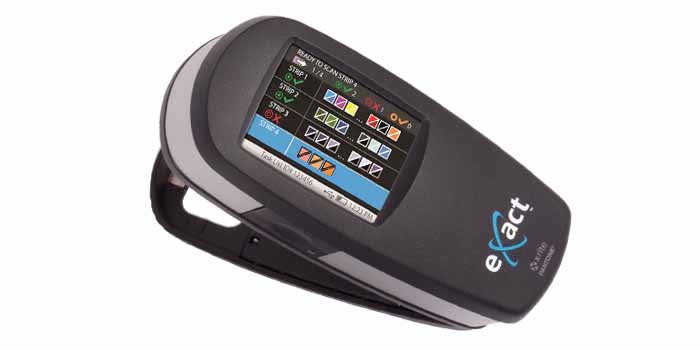

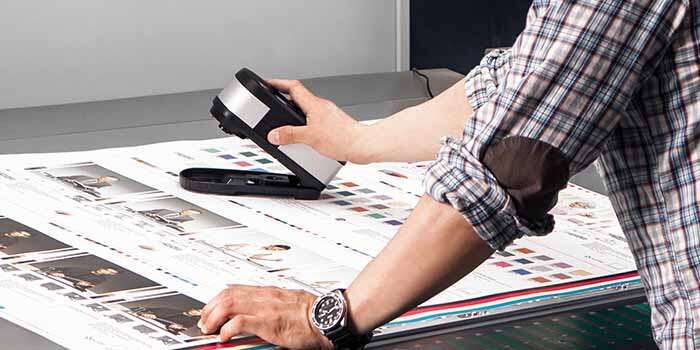

Ideal for ink rooms, quality control labs, and print and packaging manufacturing facilities with the highest standards, the eXact Advanced can measure the color of ink and paper before, during, and after print production to ensure color stays on target. It also connects with PantoneLIVE and NetProfiler to maximize color accuracy within the workflow.
Inter-Instrument Agreement
Measurement Time
Device Geometry
The eXact Advanced doesn’t just validate the color of CMYK and spot color inks, it can simultaneously measure four M modes to visualize the spectral reflectance of a substrate or ink, measure the concentration of a specific ink, and measure the difference of a substrate or ink over white and over black.
Media with texture, such as uncoated stocks or digitally printed media, can introduce directional printing errors. The eXact offers three measurement light sources that create a truly ISO-defined circumferential illumination for less variation.
Verifies the concentration of inks with absolute and relative color strength features.
Leverages a reflectance graph to demonstrate the spectral reflectance of a substrate or ink to detect metamerism.
Protects the instrument from pressroom dust at all times
| Aperture | 1.5mm, 2mm, 4mm, 6mm |
| Battery | Lithium Ion, 7.4VDC, 2200mAh |
| BestMatch Feature | Yes |
| Calibration | Automatic on integrated white reference |
| Color Differences | CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy |
| Communication Interface | USB 2.0; Bluetooth (optional) - Class II |
| Configuration Options | Bluetooth, NetProfiler, Multiple User Profiles with Password Protection |
| Connectivity | USB 2.0; Bluetooth |
| Density Range | 0.0 D – 3.0 D |
| Density Standards | Status A, E, I, T and G |
| Dimensions (length, width, height) | 18 cm x 7.8 cm x 7.6 cm; 7.1" x 3.1" x 3.0" |
| Experience Level | Print Quality Managers, Ink Formulators, and Color Specialists interested in controlling color throughout the workflow and reducing make ready waste |
| G7 Certification | Yes with embedded G7, PSO, JapanColor job templates |
| Humidity | 30 to 85% RH (non-condensing) |
| Illuminants | A, C, D50, D55, D65, D75, F2, F7, F11, D12 |
| Import/Export Format | CxF3 |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2009 |
| Instrument Display | Color touch-screen, 320 x 240 pixels |
| Internal Temperature & Humidity Sensor | 30 to 85% RH (non-condensing) |
| Languages Supported | Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese |
| Light Source | Gas filled tungsten (illuminant type A) and UV LED |
| Macintosh | MacOS X 10.10, 10.11, 10.12, 10.13 |
| Measurement Conditions | M0, M1 (part 1), M1 (part 2) , M2, M3; also available in Xp variant for flexible packaging substrates |
| Measurement Geometry | 45°/0° ring illumination optics, ISO 5-4:2009(E) |
| Measurement Time | < 1 sec |
| NetProfiler Support | Yes |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| PantoneLIVE Support | Yes; embedded Pantone Libraries |
| Pass / Fail | Yes |
| Sample/Measurement | Max 5,000 samples |
| Scanning Capability | Yes (Optional Upgrade) |
| Service Indicator | Certification Reminder |
| Short Term Repeatability - Density | '+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D) |
| Short Term Repeatability - White | 0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds) |
| Software Development Kit | Yes |
| Software Modes | Basic |
| Spectral Analyzer | DRS Spectral Engine |
| Spectral Interval | 10nm |
| Spectral Range | 400nm to 700nm |
| Spectral Reporting | 400 nm to 700 nm with 10nm interval |
| Standards | More than 20'000 standards (incl. data for all M modes); New Color Library Tool to Create and Store Standards |
| Storage Temperature Range | '-20° to 50°C -4° to 122°F |
| Supported Devices | Works with ColorCert, InkFormulation, NetProfiler |
| User Experience | Start-up wizard; eXact Advanced is the most configurable instrument on the market with password protected user profiles for workflow confidence |
| Voltage | 12 VDC @ 2.5 A |
| Warranty | 1 year |
| Weight | 700 g 1.6 lbs. |
| What's Included? | USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate |
