i1Basic Pro 3 Plus


i1Basic Pro 3 Plus is an affordable, professional-level spectral color measurement solution including display and projector profiling and print quality assurance.

The Standard of Color Perfection

Designed for imaging professionals who rely on accurate color for their displays and projectors who want to track and verify monitor and print quality and who need to capture spot color measurement, the i1Basic Pro 3 Plus is the answer.

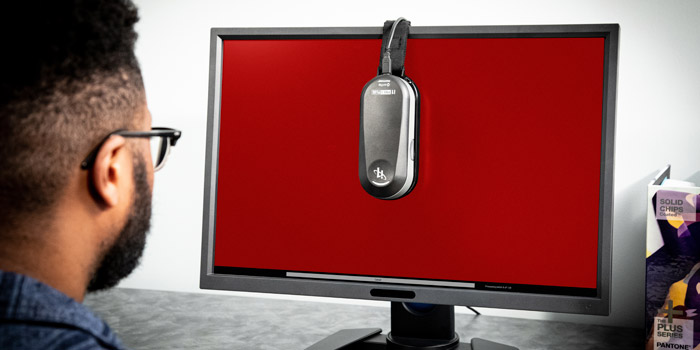

The i1Basic Pro 3 Plus calibrates and matches multiple displays, including up to four displays connected to a single computer as well as unlimited multiple monitors connected to different computers for consistent color viewing.

With the i1Basic Pro 3 Plus, you can quickly and easily create custom monitor and projector profiles that ensure the colors you view are true, verify soft proofs and print quality with built-in Quality Assurance (QA) tools, and easily capture and manage spot colors.

Benefits

  • Large aperture (8mm) with support for high brightness levels (up to 5000nits), improve emissive measurement, resulting in the best possible calibration and profiling of monitors and projectors.
  • Full support for the latest video standards, including NTSC, ITU-R-Rec.BT.709 and PAL SECAM broadcast video standards.

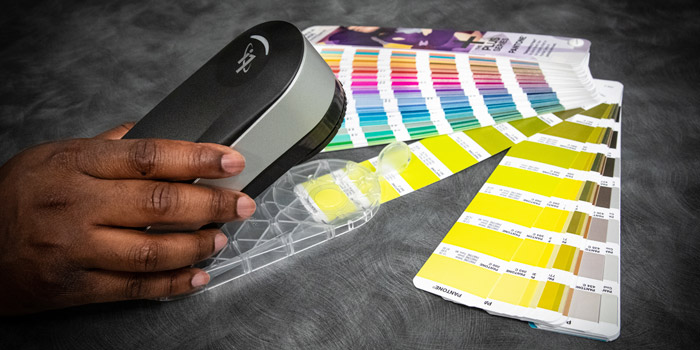

  • PANTONE Color Manager software enables accurate capture and management of spot colors and helps users build palettes of best match PANTONE colors that are auto-extracted from their own images.
  • Easy upgrade to i1Publish software to add complete printer (RGB, CMYK, CMYK + any four) profiling and quality control functionality, and camera profiling capabilities.
  • For increased automation, use the optional i1iO automated hands-free chart reader or add an i1iSis 2 automated chart reader for creating printer profiles.

Specifications

Aperture Measurement aperture: 8 mm (0.31”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
Available Disk Space 2GB
Calibration Manual on external ceramic white reference (included)
Communication Interface USB 1.1
Connectivity Powered USB port
Dimensions (length, width, height) i1Pro device: 162 mm x 69 mm x 64 mm (6.4” x 2.7” x 2.5”)
Display Resolution 1024x768 pixels or higher
Experience Level Intermediate to Advanced
Humidity 30 to 85% RH (non-condensing)
Illumination Spot Size 12 mm (0.47”)
Inter-Instrument Agreement 0.3 ∆E00* average, 0.8 ∆E00* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º))
Internet Connection Required for software install, download and automatic update
Languages Supported Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
Light Source i1Pro3 Plus LED Illumination (including UV)
Macintosh MacOS X 10.11x, 10.12x, 10.13x, 10.15 (with latest upgrades installed)
Measurement Conditions • M0 - UV included - ISO 13655:2017
• M1 - D50 - ISO 13655:2017
• M2 - UV excluded Filter - ISO 13655:2017
• M3 - Polarization - ISO 13655:2017

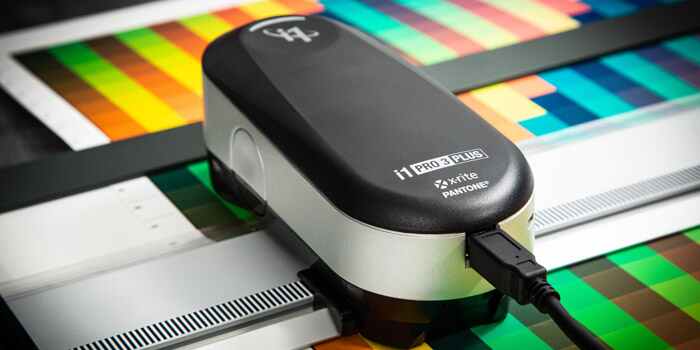

Measurement Frequency in Scanning Mode 400 measurements per second
Measurement Geometry 45°/0° ring illumination optics, ISO 13655:2017
Measurement Spot 8mm (0.315")
Media Thickness 1mm or less
Memory 2GB Minimum
Number of Displays Supported per Workstation Up to 4
Operating Temperature Range 10°C to 35°C
50°F to 95°F
Patch Size Minimal Patch Size in Scanning Mode: 7 x 7 mm (0.28” x 0.28”) (Width x Height) with sensor ruler 10 x 7 mm (0.40” x 0.28”) (Width x Height) without sensor ruler
Photometric Range 10nm; Sampling interval 3.5nm
Processor MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better
Scan Length Maximum 515mm (20.28")
Scanner Target Support Yes
Scanning Capability Yes
Security User must have Administrator rights to install and uninstall the application
Short Term Repeatability - White 0.05 dE00 on white (D50,2°, mean of 10 measurements every 3 seconds on white)
Spectral Analyzer i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array
Spectral Range 380 - 730 nm
Spectral Reporting 380 ... 730 nm in 10 nm steps
Storage Temperature Range -20° to 50°C
-4° to 122°F
Supported Profile Format ICC version 2, version 4.3, & iccMax
User Experience Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
Video Card MAC: Latest drivers for video card installed;
WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
Warranty Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.

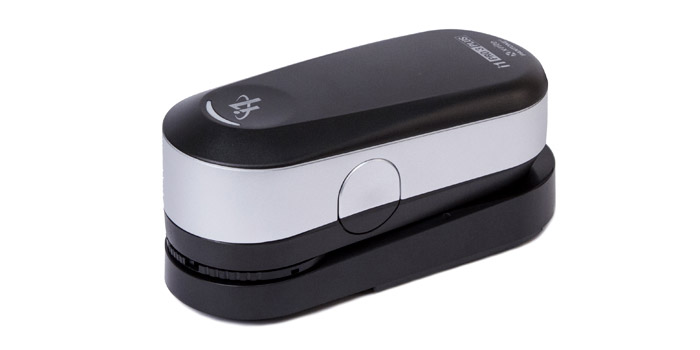

Weight i1Pro device: 285 g (10.1 oz)

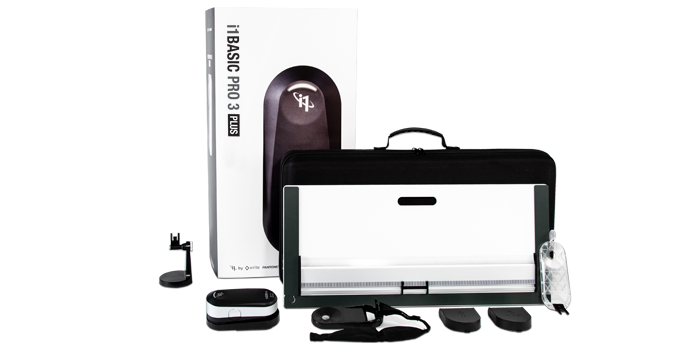

What's Included? i1Pro 3 Plus spectrophotometer (measurement device), calibration plate, polarizing filter, ambient light measurement head, monitor holder, positioning target, XL scanning ruler, XL backer board, USB cable. i1Profiler v3.x software for monitor profiling plus QA for monitors and printers, PANTONE Color Manager software, ColorTRUE mobile app download from iTunes® App Store.
Windows Windows 7, 8, 8.1, 10 (with latest Service Pack installed)
